Board and Batten Metal Siding Panel
The Board & Batten metal panel replicates the timeless look of traditional board-and-batten siding with the durability of steel. Its alternating 8” wide panels and raised 2” battens create strong vertical lines, making it ideal for siding applications.
Board & Batten panels are popular for homes, cabins, shops, and modern farmhouse designs. The vertical pattern adds depth and architectural character while maintaining the durability and low maintenance of metal siding. Builders and homeowners choose this panel when they want the classic board-and-batten look with long-lasting performance and clean, professional lines that enhance both traditional and contemporary building styles.

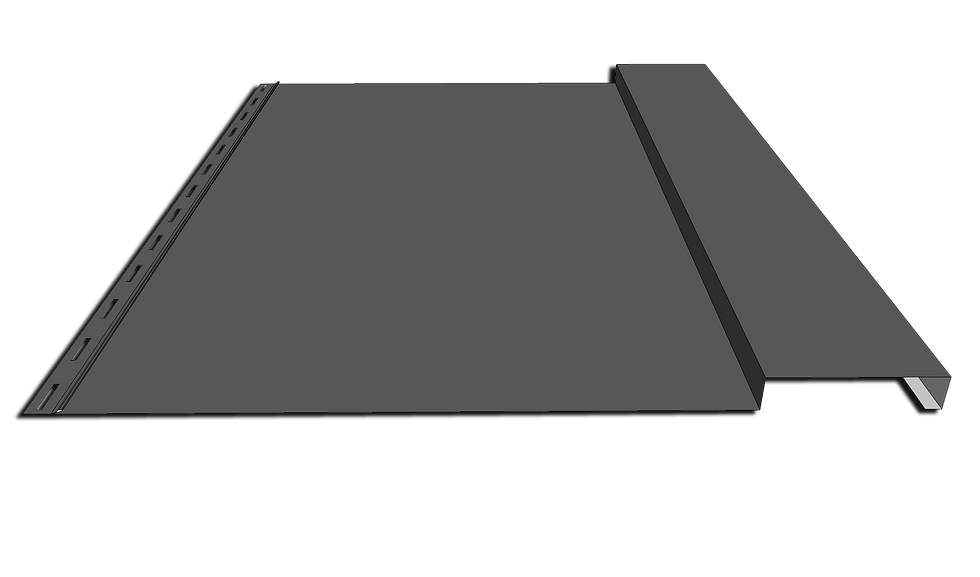

Panel Profile
Board and batten metal panels use a flat board section with a raised batten leg that overlaps the panel seam. This profile hides fasteners, creates strong vertical lines, and adds dimensional shadowing across the wall surface.
Board and Batten Siding Specifications
Coverage Width
10 inches
Ideal Applications
Seam Height
2” x 3/4” Batten
- residential homes
- gables
- accent walls
- shops
- outbuildings
- modern farmhouse-style designs
Fastener Type
Hidden fastener
Standard Gauges
26 gauge
Optional Gauge
24 gauge
Panel Lengths Available
Custom cut to length
Board and Batten Installation Examples
Board and batten metal siding is commonly used on homes, gables, accent walls, shops, and modern farmhouse-style projects. Below are examples of finished siding projects using board and batten metal panels.

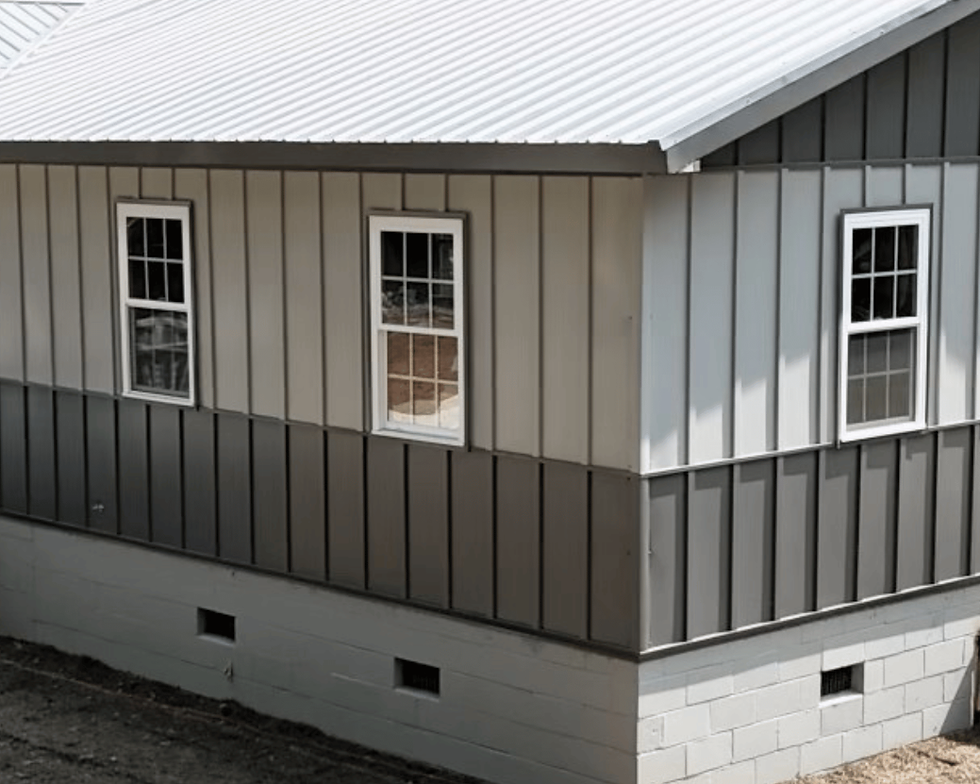

Board and batten metal siding on a residential home.
Board and batten panels used on a barndominium.
Modern farmhouse design with board and batten accents.
Board and batten metal siding on a shop house.
Board and batten panels on a feature wall.
Available Color Options
These are some of the color options available for Board and Batten panels, engineered for weather protection and aesthetic appeal.
Ask about Crinkle and Premium Wood Print Colors.
SMP COLOR CHART
FOR 26 GA
SMP paint systems are developed using a blend of polyester and silicone agents. Silicone acts to improve the gloss retention and weather resistance of the polyester coating. SMP pre-painted steel has been used for decades and is preferred by many building owners due to the relative durability of the coating and the budget-friendly cost as compared to other more expensive paint systems.
Contact us for current availability and more colors.
*Certain colors may be subject to an order minimum and longer lead time.
PVDF COLOR CHART
FOR 24 GA
PVDF is a resin made up of about 70% polyvinylidene thermoplastic fluoropolymer and 30% acrylic. With trademarked names like Kynar 500® or Hylar 5000®, PVDF resins are the best protective coatings to withstand extreme temperatures, sun exposure, and humidity in the atmosphere. Therefore, you can expect less chalking and fading with PVDF. Pigments also stay brighter for longer than an SMP system, as well as staying cooler, due to reflecting the sun’s energy to dissipate heat.
Z-Flash
Used on siding to protect water from seeping into horizontal joints and protects the structure.
Recommended Trim for Board & Batten
Trim components complete the siding system and help protect edges from water intrusion. Proper trim also enhances the finished appearance of the siding.
Base Trim
Protects the bottom of the panel and closes the ends from exposure.
Outside Corner
Professional finish for panels meeting at an exterior 90-degree corner.
J or C Channel
Closes the top and sides of panels where cut edges are exposed. Trims out doors, windows, tops of panels.

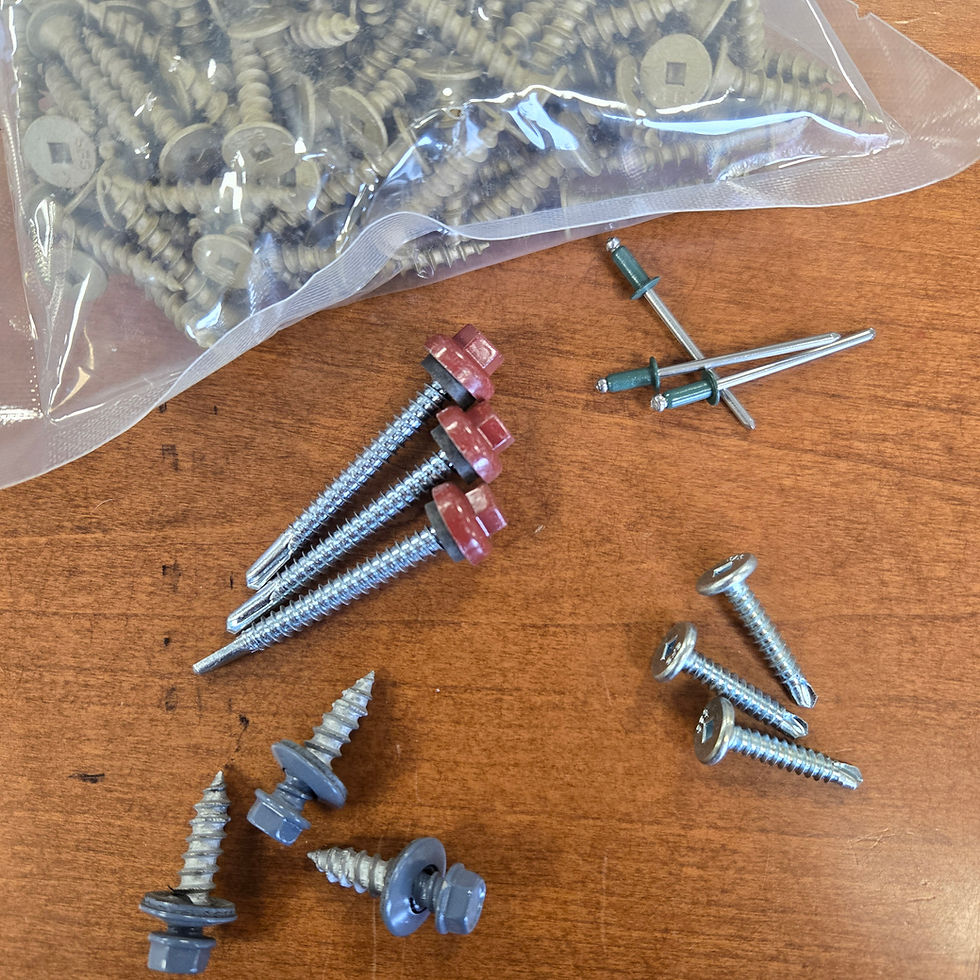

Fasteners
Concealed pancake head and rivets for a weather-tight connection.
Installation Accessories
Using the correct fasteners and accessories helps ensure proper installation and long-term roof performance.
Butyl Tape
High-tack sealant tape used at panel laps and critical seams.
Sealant
Flexible sealant for extra protection at penetrations and trim transitions.
