Standing Seam Metal Roofing Panel
The Standing Seam panel is a premium concealed-fastener metal roofing system with tall vertical seams that are mechanically seamed together. This design provides exceptional weather protection and a clean architectural appearance for residential and commercial roofs.
Standing seam panels are chosen for their premium performance and modern architectural style. The mechanically seamed design with hidden clips protects fasteners from weather exposure and makes the system well suited for low-slope roofs. Homeowners, architects, and builders often select standing seam for custom homes, cabins, and commercial buildings where long-term durability, clean lines, and a high-end metal roof system are desired.
Panel Profile
Standing seam panels feature raised vertical seams that connect adjacent panels while hiding the fasteners beneath the seam. This concealed fastening system helps protect the roof from moisture intrusion and provides a clean finished appearance.
Available in either 1_1/2" mechanically seamed or 1_17/32" SS450SL
Standing Seam Panel Specifications
Coverage Width
16 inches
Ideal Applications
Seam Height
1.5 inches
- Residential homes
- Cabins
- Architectural buildings
- Commercial buildings
- Modern residential designs
Fastener Type
Concealed clip system Mechanically seamed
Standard Gauges
26 gauge, 24 gauge
Recommended Minimum Roof Pitch
1:12
Panel Lengths Available
Custom cut to length
Standing Seam Installation Examples
Standing seam panels are commonly used on residential homes, cabins, and architectural projects where appearance and weather protection are a priority. Below are examples of finished roofing projects using standing seam panels.
Standing seam metal roof installed on a residential home.
Standing seam roof on a mountain cabin.
Standing seam panels on an architectural building.
Residential porch addition with standing seam roof.
Contemporary style home featuring a standing seam roofing system.
Available Color Options
SMP COLOR CHART
FOR 26 GA
SMP paint systems are developed using a blend of polyester and silicone agents. Silicone acts to improve the gloss retention and weather resistance of the polyester coating. SMP pre-painted steel has been used for decades and is preferred by many building owners due to the relative durability of the coating and the budget-friendly cost as compared to other more expensive paint systems.
Standing seam panels are available in a wide range of durable SMP and PVDF painted finishes designed to provide long-lasting protection and an attractive architectural appearance.
Contact us for current availability and many more colors.
*Certain colors may be subject to an order minimum and longer lead time.
PVDF COLOR CHART
FOR 24 GA
PVDF is a resin made up of about 70% polyvinylidene thermoplastic fluoropolymer and 30% acrylic. With trademarked names like Kynar 500® or Hylar 5000®, PVDF resins are the best protective coatings to withstand extreme temperatures, sun exposure, and humidity in the atmosphere. Therefore, you can expect less chalking and fading with PVDF. Pigments also stay brighter for longer than an SMP system, as well as staying cooler, due to reflecting the sun’s energy to dissipate heat.
Ridge Cap
Covers the peak of the roof to help shed water off both sides.

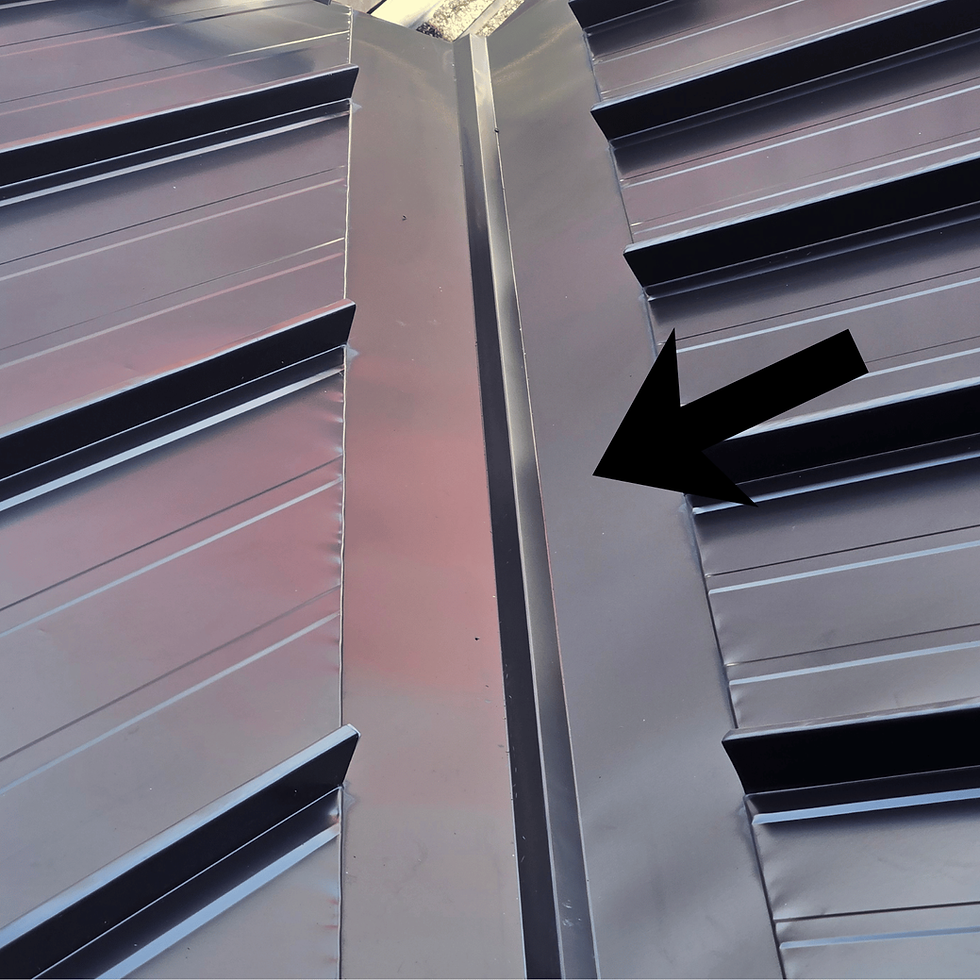

Valley Trim
Channels water safely down roof valleys where two slopes meet.
Recommended Trim for Standing Seam Panels
Trim components complete the roof system and help protect edges and transitions from water intrusion. Proper trim also enhances the finished appearance of the roof.
Gable Trim
Finishes and protects the exposed edges along the gable ends.
Sidewall Flashing
Seals the joint where the roof meets a vertical sidewall.
D-style Eave Trim
Guides water away from the eaves and protects the roof edge.
Endwall Flashing
Protects the transition where the roof runs into an upper wall.
Panel Clips
Secure the panel ribs to the roof deck either fixed or allowing for thermal movement.
Closure
Snap Z ridge vent or solid closure to provide protection at trim transitions.
Installation Accessories
Proper accessories ensure secure installation and long-term performance of standing seam roofing systems.
Fasteners
Color-matched roofing screws, pancake screws, and rivets for a weather-tight connection.
Pipe Boots
Form-fitting flashing for sealing around pipes and round penetrations.
Butyl Tape
High-tack sealant tape used at panel laps and critical seams.
S-5 Snow break
S-5! ColorGard system provides engineered protection without penetrating the panels.
