Snap Lock Metal Panel

The Snap Lock panel is a concealed-fastener metal roofing and siding panel that locks together over a hidden nail strip, without exposing screws. Its clean vertical seams create a modern appearance while providing durable, weather-resistant performance for residential and light commercial projects.

Snap Lock panels are a popular choice for homeowners and builders who want the sleek look of standing seam with simpler installation. The concealed fastener system protects the roof from weather exposure while maintaining smooth, uninterrupted lines. In addition to roofing, Snap Lock panels are often used for siding, accent walls, and modern architectural designs where durability and contemporary style are both important.

Request a Materials Quote

View Available Trim

Panel Profile

Snap Lock panels use a raised rib that snaps over a hidden nail strip. This profile conceals the fasteners, helps shed water efficiently, and creates a smooth, finished appearance across the roof surface.

Snap Lock Panel Specifications

Coverage Width

16 inches

Ideal Applications

Seam Height

1 inch

Residential home roof
Siding
Cabins
Architectural buildings
Commercial buildings
Modern residential designs

Fastener Type

Concealed fastener system with hidden nail strip

Standard Gauges

26 gauge, 24 gauge

Recommended Minimum Roof Pitch

3:12

Panel Lengths Available

Custom cut to length

Snap Lock Installation Examples

Snap Lock panels are commonly used on modern residential homes, cabins, and light commercial projects where a clean, concealed-fastener look is desired. Below are examples of finished roofing projects using Snap Lock panels.

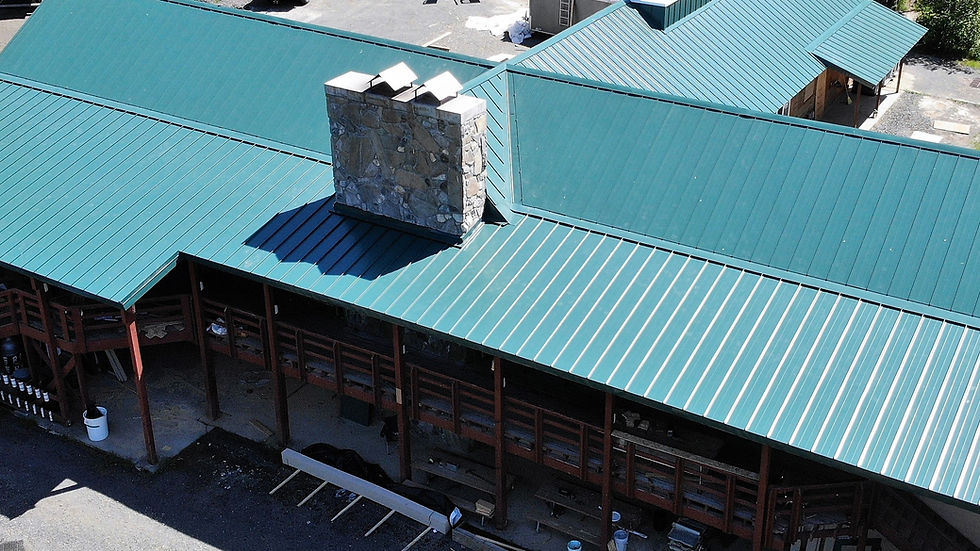

Snap Lock metal roof installed on a rural cabin camp.

Snap Lock panels on a mountain cabin roof.

Snap Lock roofing on a commercial building.

Snap Lock metal roof on a mountain residence and porch.

Snap Lock panels on a contemporary style home roof.

Need Help Planning Your Project?

Our team can help determine the panels, trim pieces, and accessories needed for your roofing project. Request a materials quote and we’ll help you get started.

Call and get a free quote

SMP COLOR CHART
FOR 26 GA

SMP paint systems are developed using a blend of polyester and silicone agents. Silicone acts to improve the gloss retention and weather resistance of the polyester coating. SMP pre-painted steel has been used for decades and is preferred by many building owners due to the relative durability of the coating and the budget-friendly cost as compared to other more expensive paint systems.

Available Color Options

Snap Lock panels are available in a wide range of durable SMP and PVDF painted finishes designed to provide long-lasting protection and an attractive architectural appearance.

Contact us for current availability and more colors.
*Certain colors may be subject to an order minimum and longer lead time.

PVDF COLOR CHART
FOR 24 GA

PVDF is a resin made up of about 70% polyvinylidene thermoplastic fluoropolymer and 30% acrylic. With trademarked names like Kynar 500® or Hylar 5000®, PVDF resins are the best protective coatings to withstand extreme temperatures, sun exposure, and humidity in the atmosphere. Therefore, you can expect less chalking and fading with PVDF. Pigments also stay brighter for longer than an SMP system, as well as staying cooler, due to reflecting the sun’s energy to dissipate heat.

Recommended Trim for Snap Lock Panels

Trim components complete the roof system and help protect edges and transitions from water intrusion. Proper trim also enhances the finished appearance of the roof.
